Premium Pistol Production

Archon Firearms distinguishes itself in the premium pistol market by seamlessly blending exceptional quality with unmatched customization options. We believe every shooter deserves a firearm tailored to their unique preferences, which is essential for achieving the ultimate shooting experience.

With a strong focus on performance and reliability, Archon is dedicated to meeting individual needs. Our firearms deliver unparalleled accuracy, superior control, and remarkable efficiency while being fully equipped for optics and suppressors. Each pistol exemplifies Archon’s unwavering commitment to excellence in every detail.

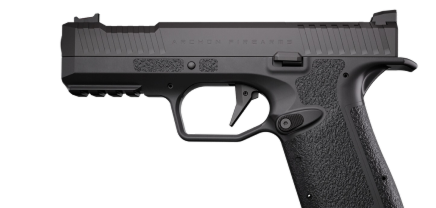

Archon Type B

Archon Firearms Type B is a semi‑automatic polymer pistol developed and designed with a focus on the shooter’s needs. It is designed to combine excellent performance, versatility, and ease of control. Innovative features all work for a better shooting experience.

Archon Firearms Type B accessories detail

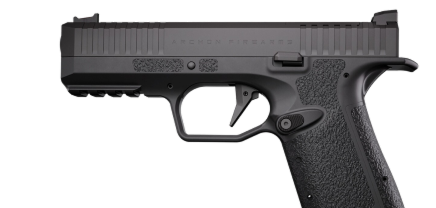

Archon Type D

The Type D model is a compact, high‑performance pistol that features all the technical goodies of Type B while being equipped with a straight-line design slide for the customers who prefer a more conservative look.

The Type D model is a compact, high‑performance pistol that features all the technical goodies of Type B while being equipped with a straight-line design slide for the customers who prefer a more conservative look.

Archon Firearms Type D accessories detail

Versatility

loading ...

Open to changes, ready for challenges

Both Type B and Type D can be purchased as a standard version, an Optics Ready (OR) Version with a choice of optics cut for RMR, RMRc, and ACRO Footprint Red Dot Optics, a Suppressor Ready (SR) version with 1/2×28 thread-pitch precision-cut barrels, or an Optic and Suppressor Ready (OSR) version allowing all features out of the box. All model versions feature a 1913-style Picatinny rail on the dust cover for weapon light or laser module attachment.

Archon Firearms Type B Optics and Suppressor Ready

Interchangeable grip textures

Archon Firearms grip with rubber texture detail

Archon Firearms grip with pro texture detail

Archon Firearms grip with granulate texture detail

Performance

loading ...

AF-SPEEDLOCK®

The AF‑Speedlock® is a unique pistol locking system that eliminates barrel tilt during the slide cycle, allowing the barrel to move straight back only a few millimeters. This innovative design offers several advantages over traditional Browning-style tilting barrel systems, most notably improved accuracy, particularly for follow-up shots, as it maintains better barrel alignment.

Additionally, with a bore axis of approximately 0.47in (12mm), the AF‑Speedlock® facilitates enhanced recoil management and minimizes muzzle flip. This results in a smoother recoil impulse, faster cycling, and increased control for the shooter. The combination of reduced muzzle flip and improved recoil management allows for easier handling and faster follow-up shots, making the AF‑Speedlock® a compelling choice for those seeking superior performance in their pistol.

Control

loading ...

Short reset trigger

Faster follow-up shots.

Redesigned magazine release button

Intuitive magazine release.

Extended beveled magazine well

More efficient reload.

Beaver tail

Better recoil management.

Firing pin indicator

Awareness.

Front and rear slide serrations

Confident tight hold under any circumstances

Tech Specs

Inch Metric

Model	Type B
Weight	29.6 oz. (unloaded)
Length	7.7″
Height	5.2″
Width	1.4″
Sight radius	6.5″

Action	Striker-fired
Caliber	9×19
Locking system	AF‑Speedlock®
Frame	Steel, nitride finish
Slide	Steel, nitride finish
Trigger	Tactile - short reset
Barrel	4.3″, 6 grooves, 1:10 RH twist, 45° crown, nitride finish
Magazines capacity	16 RDS & 19 RDS

Technical drawing of the Type B from the top and the left side

1.4″ 7.7″ 5.2″

Download Datasheet

Model	Type D
Weight	29.6 oz. (unloaded)
Length	7.7″
Height	5.2″
Width	1.4″
Sight radius	6.5″

Action	Striker-fired
Caliber	9×19
Locking system	AF‑Speedlock®
Frame	Steel, nitride finish
Slide	Steel, nitride finish
Trigger	Tactile - short reset
Barrel	4.3″, 6 grooves, 1:10 RH twist, 45° crown, nitride finish
Magazines capacity	16 RDS & 19 RDS

Technical drawing of the D from the top and the left side

1.4″ 7.7″ 5.2″

Download Datasheet

Our Factory and History

In 2012, a team of passionate designers, shooters, and industry experts set out to revolutionize handgun performance. Our pursuit of perfection led to the development of the groundbreaking AF-Speedlock® system, a unique locking mechanism that allows the barrel to move straight back without tilting during the firing cycle. This innovative design results in reduced muzzle rise, minimized recoil, faster target re-acquisition, and improved accuracy, especially for follow-up shots. Despite being newcomers to the firearms industry at that time, Archon Firearms entered the market with a distinctive product, and the Archon Type B pistol has since become a growing name in the US firearms market, thanks to its performance-focused features.

Archon Firearms has invested heavily in its own production facility and now offers a complete line of firearms models. This commitment to in-house manufacturing enables greater quality control and allows the company to produce key components independently. Key features of Archon pistols include an extremely low bore axis of approximately 0.47in (12mm) for enhanced control, a state-of-the-art ergonomic grip designed to mitigate recoil, and compatibility with optics and suppressors for added versatility. Our company’s „shooter first“ attitude becomes most evident when handling our products.

Archon Firearms has worked closely with professional shooters to refine the firearm’s design, ensuring that each pistol meets the evolving needs of modern users. The Gen 2 Type B model introduces an adaptable grip system with interchangeable textures and a modular design that allows for customization between full-size, compact, and sub-compact configurations.

As Archon Firearms begins a new chapter in its history, it takes pride in manufacturing high-quality handguns that promise memorable experiences for customers. With a focus on innovation, performance, and user satisfaction, Archon Firearms continues to make its mark in the competitive world of premium pistols.
